Callgraph analysis

Say you have a region of a program where users Want Static Verification that some function is never called. For simplicity, let's say you want to make sure you never call panic! so your program doesn't crash.

In this post we talk about:

• Different approaches you could take to implementing this requirement
• The approach we chose for Ferrocene and what made it the right choice for us
• Special requirements of core and of certification
• How we implemented callgraph analysis as a custom compiler driver
• How you can try it out yourself.

Now, onwards! There are a few different approaches you could take to implementing this analysis.

The simple approach: Clippy lints

The first thing you could try is getting clippy to catch it:

#![deny(
  // explicit panics
  clippy::panic,
  clippy::unwrap_used,
  clippy::expect_used,
  clippy::unreachable,
  clippy::unimplemented,

  // panics on language types
  clippy::indexing_slicing,
  clippy::arithmetic_side_effects,

  // panics on library types
  clippy::string_slice,
  clippy::unchecked_time_subtraction,
  clippy::invalid_regex,
)]

This has a few issues:

• It doesn't apply recursively to your dependencies, which are still free to panic.
• Relatedly, it can't possibly catch all library types. Clippy has hard-coded lints for Duration and Regex, but it can't lint everything in the ecosystem.
• This doesn't apply to anything other than panics. Say that your property is "this function never makes a network call" or "this function never allocates memory". Clippy can't catch this; its lints are designed around the idea of panicking, not around actual calls to the panic runtime. It doesn't look "inside" of functions, so it's not applicable to any ideas it doesn't recognize.

The language approach: effect (type-)systems

In this approach, we build the idea of side-effects directly into the language. We annotate the type of each function with the possible side effects it can have, and don't allow it to call functions that could cause a side effect that wasn't annotated¹. The most well-known example of this is checked exceptions in Java:

static void createFile(String name) {
    new File(name).createNewFile();
    //~^ ERROR unreported exception IOException
}

In order for this program to compile, we must annotate the exception:

static void createFile(String name) throws IOException {
  new File(name).createNewFile(); // ok
}

This can be extended to other things like I/O, memory allocation, etc. For an example of such a language, see Koka:

fun hello() : () { println("hi, you!") }
//~^ ERROR type error: effects do not match
            inferred effect: console|_e
            expected effect: total

fun hello2() : console () { println("hi, you!") } // ok

In Koka, "total" means "this function has no effects". Since hello prints to the console, it's inferred to have the console effect, which is a type error.

This seems like a neat direction for further research, but retrofitting it into Rust would effectively (🥁) require creating a new language, so I won't talk too much more about it here.

The toolchain approach: linker errors

It's possible to give a linker error if you try to call panic:

fn foo() {
    struct __NoPanic;
    unsafe extern "C" {
        #[link_name =
        "\n\nERROR[no-panic]: detected panic in function `main`\n"]
        fn trigger()
        -> !;
    }
    impl ::core::ops::Drop for __NoPanic {
        fn drop(&mut self) { unsafe { trigger(); } }
    }
    let __guard = __NoPanic;
    let __result = (move || -> () {})();
    ::core::mem::forget(__guard);
    __result
}

The way this works is like so:

1. Define a new __NoPanic struct that implements Drop.
2. In its Drop impl, call an undefined C function whose name is the error message.
3. Create an instance of __NoPanic.
4. Run the main part of the function, then forget that instance. This means the Drop impl will run if—and only if—the function panics.
5. Compile the program with optimizations and then link it.

If the compiler detects that the function never panics, then it can completely optimize out the __NoPanic object, along with its Drop impl. That means it will never try to link the undefined C function, and will compile successfully. If, however, it can't confirm the function never panics (either because it really does panic, or just because the function is complicated), it will give an error while trying to link against the C function. ²

This is a neat hack to retrofit this easily into the existing language! It doesn't require any changes to the compiler or tooling, and can be added easily with an attribute macro: #[no_panic] fn foo() {}

It has a few downsides:

• This still only works for panics. It's very tied to the idea of unwinding; if your property is "don't allocate memory" it can't help.³ It also doesn't work when you set panic = "abort", as is required in #![no_std] embedded targets.
• It doesn't support async functions.
• It's highly dependent on implementation details. It won't work for non-optimizing compilers, or for interpreters. It would likely be hard to adapt to other languages than Rust.
• It depends on the optimization level, and how "smart" the compiler is, which means that it's prone to breakage and doesn't fall under Rust's stability guarantee.
• Checks don't happen until link time, so it's extremely ill-advised to use this in library crates; it only really works for applications.

The hacky approach: cfgs

You could Simply fork the standard library and slap cfg`s on all the panic machinery. I wouldn't recommend this. But you could.

The downside of this approach is that it affects everyone using core, not just the people who care about certification. To avoid breaking changes, we actually ended up introducing a whole new aarch64-unknown-none.subset target. This had other downsides, such as build scripts failing to parse the target name. It also doesn't allow compiling with libtest on that target, since it uses parts of core that have been cfg'd out. In practice, we told people to run cargo check --target aarch64-unknown-none.subset but not to use it for full builds, which was a very poor user experience.

The static analysis approach: a custom compiler driver

We want an approach that "feels like" part of the Rust language, without needing massive changes to the language, compiler, standard library, or build tooling. So, what we can do is introduce a new custom lint that uses annotations that are already valid in the language today:

#![feature(register_tool)]
#![register_tool(verify_no_panic)]
#![deny(verify_no_panic::panics)]

#[verify_no_panic::no_panic]
fn foo() { println!("xyz"); }
//~^ ERROR `std::io::_print` calls `std::io::stdio::print_to`, which may panic

This has several parts:

1. Use the register_tool attribute to mark that we have a custom compiler driver.
2. Tell our custom driver that we want to prevent panics, first at the crate-level with deny and then for the individual function with no_panic.
3. Run our custom tool with something like cargo verify-no-panic.

This is quite similar to extending clippy, except without needing to touch clippy itself.

The reason we need to say #[no_panic] a second time is in case there are some places where panicking is ok, such as in tests or compile-time evaluated code. The extra attribute lets the tool only check the places we care about.

core

This post is not hypothetical. In Ferrocene, the property we wanted to verify was "no certified function in core calls an uncertified one". For some background about this, let's talk a bit about certification standards.

Certification

In our case, we were certifying core to IEC 61508 (SIL-2) (original text), with a special focus towards use in robotics, as requested by our customers ⁴. We thank Sonair and Kiteshield for their support during the early days of certification.

IEC 61508 has many different requirements, such as documenting the testing, design, and review process, but the one that scales with the size of the codebase is Annex A.9, "Software verification". We use methods 3 and 4 ("Static analysis" and "dynamic analysis"). The spec gives us a fair bit of freedom in how we actually do our tests; the approach we document is to run our tests on every target platform with a certified core and collect code coverage that verifies that every function has been tested.

This of course means that the more code we have, the more tests we have to write. To avoid having to do several years of work before having a product at all, we chose to verify a subset of core: we mark these functions as validated, run tests and collect coverage for each of them, and tell our customers to only use those validated functions.

Core is special

Now this has an issue: how can they actually tell which parts of core they're using? Core is quite strange: it's not a normal library, but actually contains extensive integrations between the compiler and language, as discussed in my 2022 Rustconf talk about bootstrapping. That means that when you write something innocuous, like do_io()?, it actually emits a call to core::ops::try_trait::Try::branch. As a result, you really do need proper compiler integration to be able to tell which functions call which.

For the 2 previous Ferrocene releases, we had been using the cfg approach. In Ferrocene 26.05 we are switching to the compiler driver approach, which integrates much better with existing code, and also allows you to allow/deny the lint both globally and at individual call-sites.

Here's a small example of what it looks like:

#![crate_type = "lib"]
#![deny(ferrocene::unvalidated)]

fn normal_def() {
    normal_def2(); // ok
}

fn normal_def2() {}

#[ferrocene::prevalidated]
fn validated() {
    normal_def(); //~ ERROR unvalidated
}

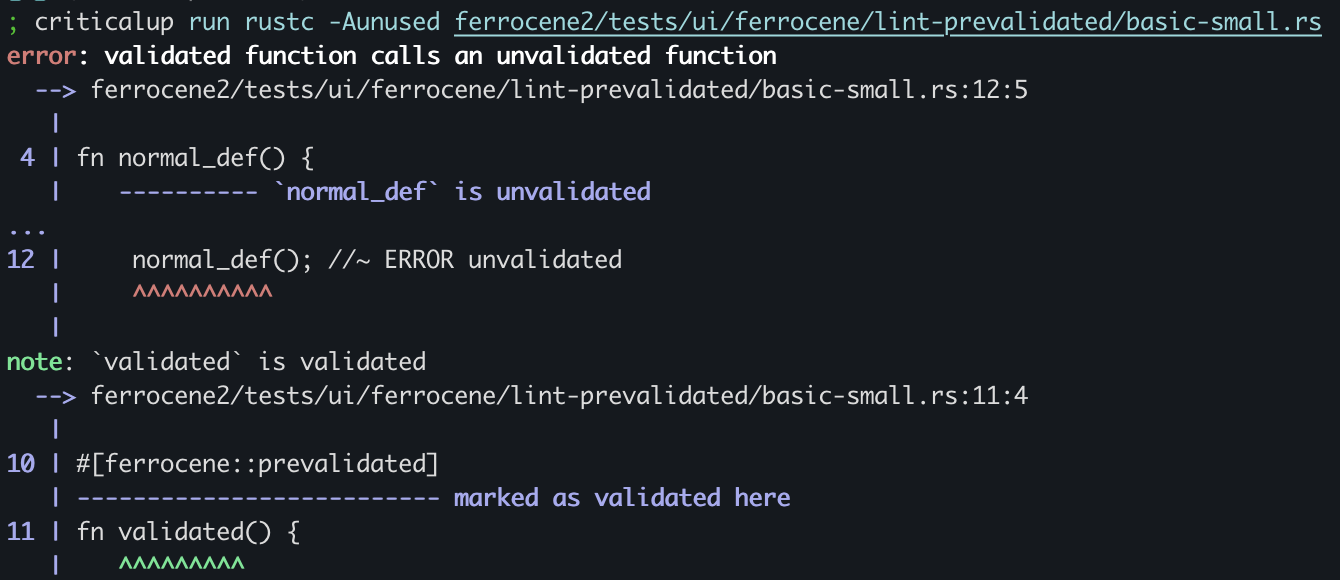

and a screenshot of the diagnostic you get when running Ferrocene on this code:

In Ferrocene, we take the liberty of injecting #![register_tool(ferrocene)] into your code so that you don't have to use nightly features. You still have the option to write it yourself if you want upstream compatibility with rustup-managed toolchains.

Requirements

We can rephrase the problem we're solving like so:

The set of validated functions in core must be closed under the function call operator.

"Closed" here is a term from mathematics that means "any operation you do to elements of this set outputs another element within the set". In other words, any time we see a function call in a validated function, the function being called must also be validated.

Note that this doesn't say anything about unvalidated functions. It's perfectly fine for core::async_iter::from_iter (which is unvalidated) to call a validated function like usize::checked_add. We only care about keeping validated functions validated.

We have a few baseline requirements here.

• This should work through function calls, macro expansions, and "builtin" syntax expansions, like ?.
• This should prefer false positives to false negatives. In other words, it's better to accidentally deny valid code than to allow invalid code to be certified.
• This should be backwards-compatible with all existing Rust code; it should only require validated functions to be annotated, without needing changes to unvalidated functions.

How it works

We wrote a callgraph analysis that verifies that our set of validated functions is closed.

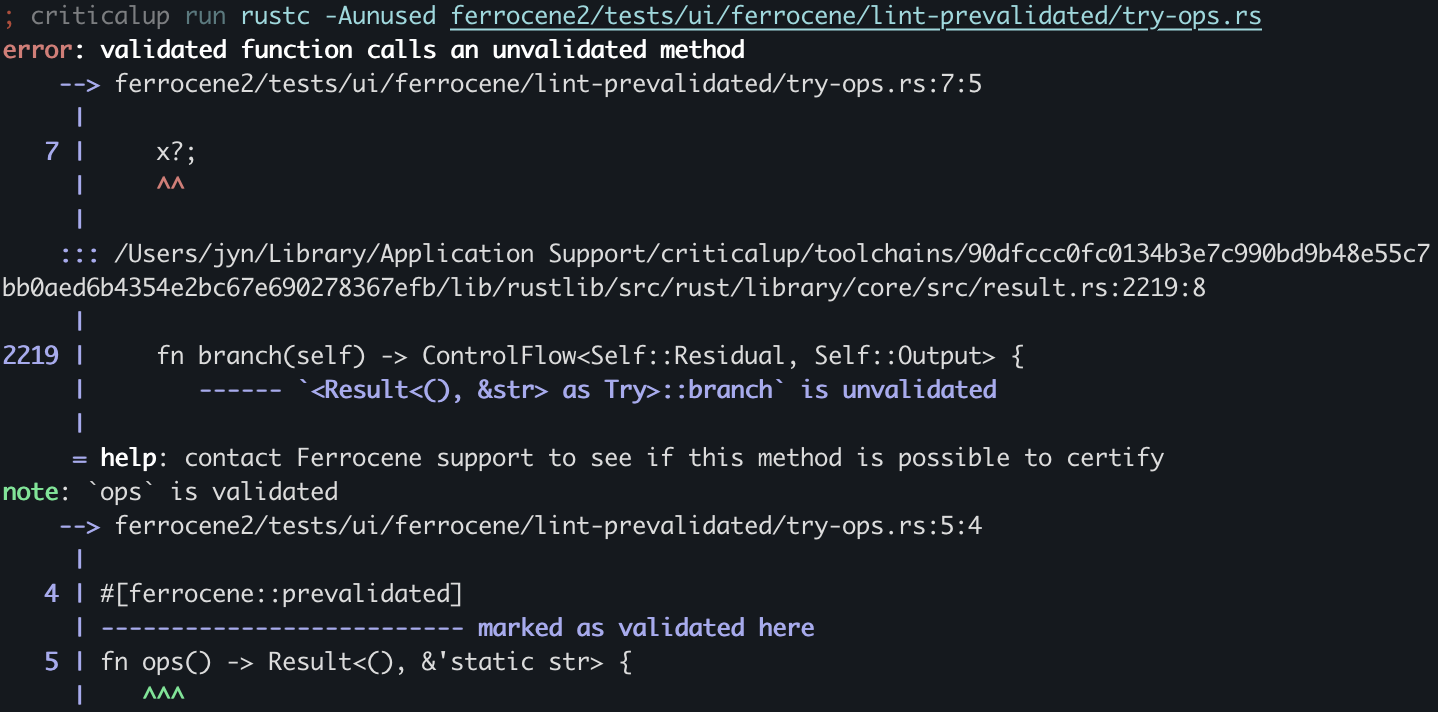

The approach we implemented has several parts. First, we have a "pre-mono" pass that works on THIR. This gives fast feedback while running cargo check, and runs late enough that it can "desugar" calls to built-in syntax:

#![deny(ferrocene::unvalidated)]
#![crate_type = "lib"]

#[ferrocene::prevalidated]
fn ops() -> Result<(), &'static str> {
    let x = Err("something went wrong");
    x?;
    Ok(())
}

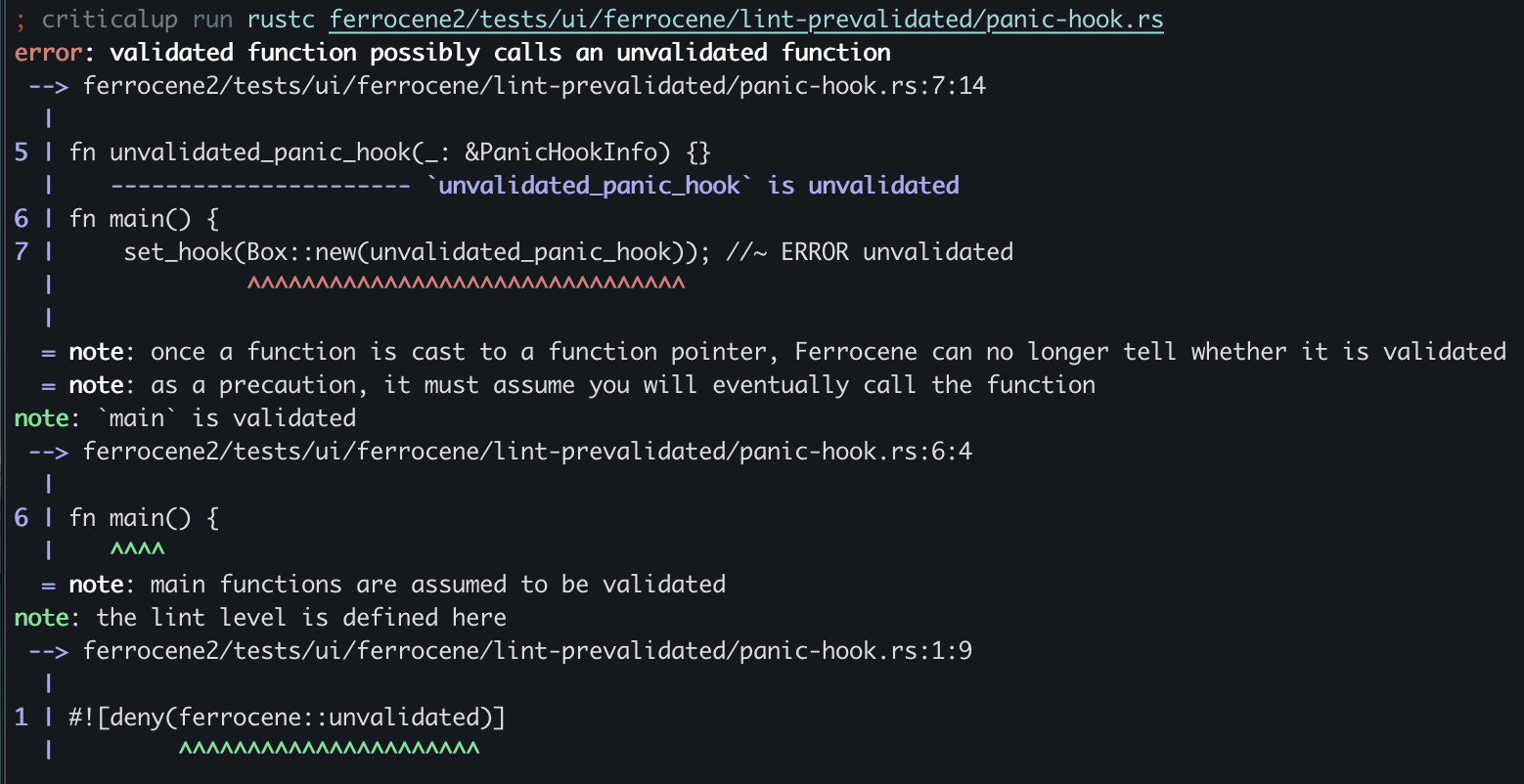

It can even catch issues through multiple layers of indirection, such as when you pass an unvalidated function pointer to a validated function:

#![deny(ferrocene::unvalidated)]

use std::panic::{PanicHookInfo, set_hook};

fn unvalidated_panic_hook(_: &PanicHookInfo) {}
fn main() {
    set_hook(Box::new(unvalidated_panic_hook)); //~ ERROR unvalidated
}

This works by looking for "unsizing casts" from a function type ⁵ to a function pointer.

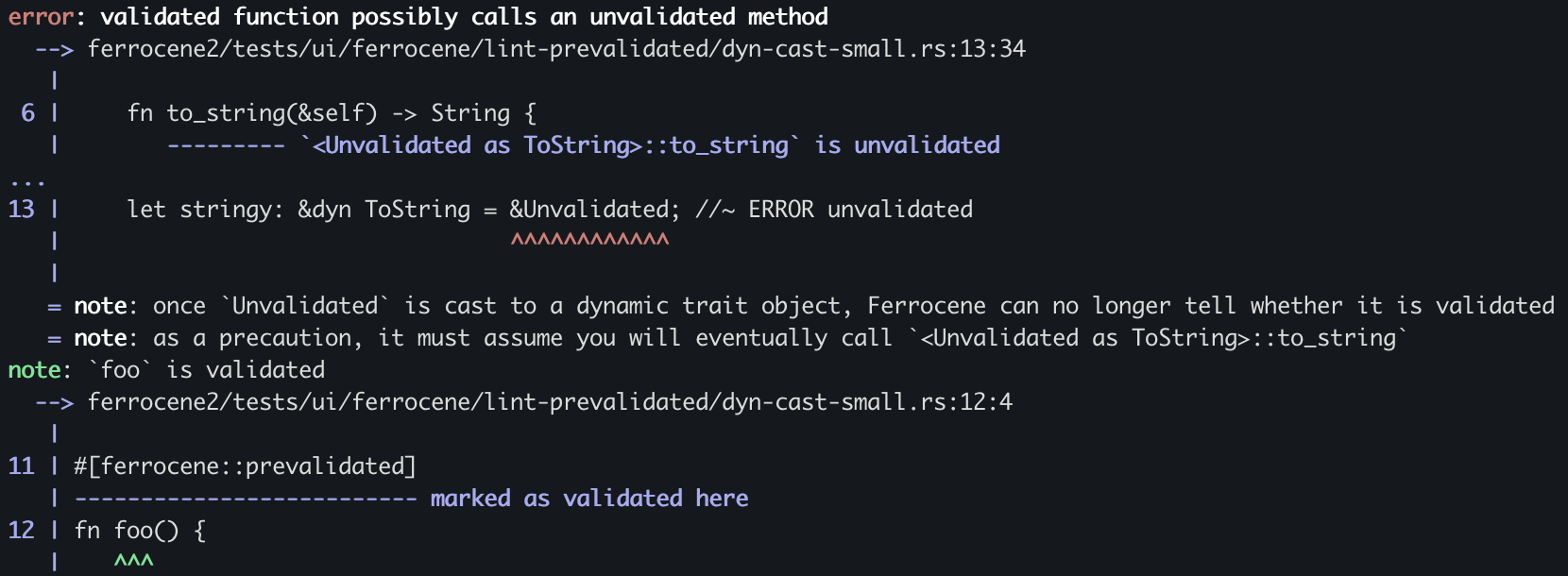

Finally, it can catch casts to dynamic trait objects, which would allow you to call an unvalidated function behind a layer of indirection:

#![deny(ferrocene::unvalidated)]
#![crate_type = "lib"]

struct Unvalidated;
impl ToString for Unvalidated {
    fn to_string(&self) -> String {
        String::new()
    }
}

#[ferrocene::prevalidated]
fn foo() {
    let stringy: &dyn ToString = &Unvalidated; //~ ERROR unvalidated
}

This works by looking for unsizing casts to a trait object, and has to account for things like supertraits and dyn-to-dyn coercions.

However, the pre-mono THIR pass isn't foolproof. Consider the following code:

#![deny(ferrocene::unvalidated)]
#![crate_type = "lib"]

struct Unvalidated;
impl Clone for Unvalidated {
    fn clone(&self) -> Self { Unvalidated }
}

#[ferrocene::prevalidated]
fn uninstantiated_generic<T: Clone>(x: T) {
    x.clone(); //~ ERROR unvalidated
}

#[ferrocene::prevalidated]
pub fn instantiation_reachable() {
    uninstantiated_generic(Unvalidated); //~ NOTE instantiated
}

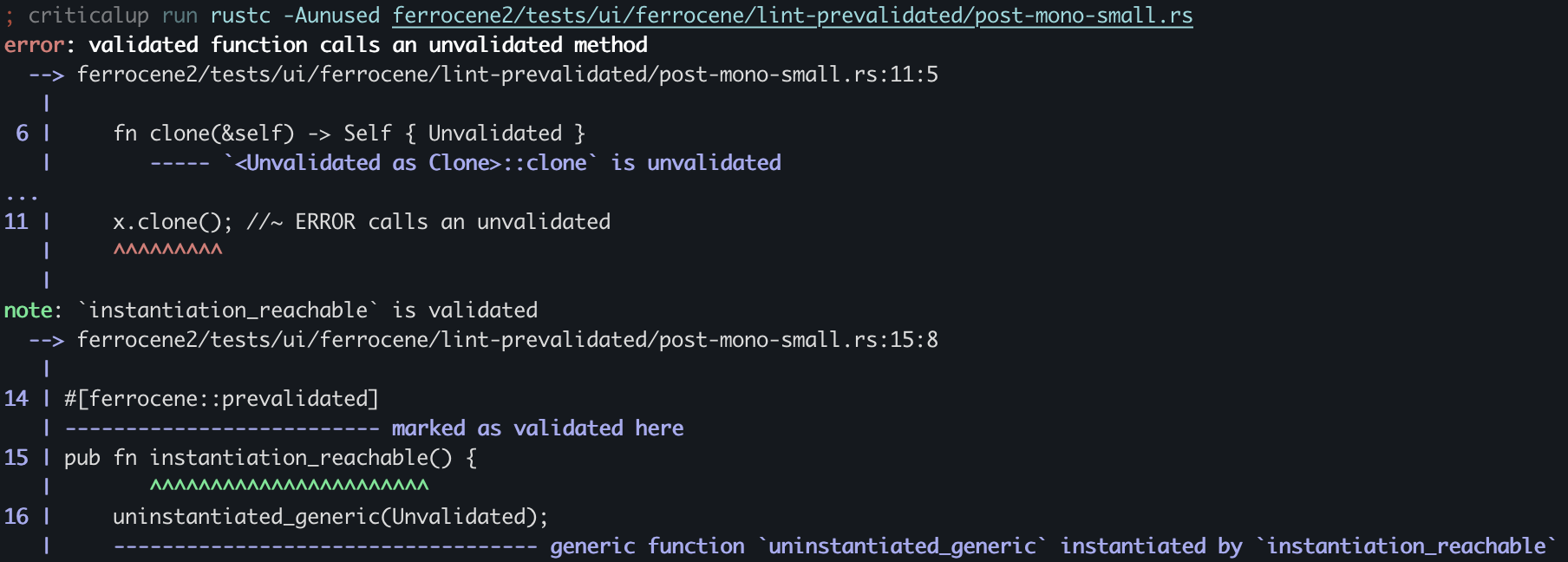

Here, we don't know the type of x on line 11 until we substitute (or in compiler terms, "instantiate") the generic parameter T for the concrete argument Unvalidated. Only then do we see that Unvalidated::clone hasn't been validated.

To catch this, we implemented a "post-mono" pass that works on MIR. This is reliable and is what we depend on for our certification, but doesn't run on cargo check. You'll only see its diagnostics when you run cargo build (and sometimes even later, if you have a library with public generic functions). It works by starting at the monomorphized roots of the program, and then working its way in along the callgraph, instantiating types as it goes. This allows us to reliably catch all function calls, no matter how deeply nested they are in generic types, even across crate boundaries:

Documentation

Previously, we had generated documentation of which parts of core were validated by running rustdoc with special --cfg flags set. This generated two sets of documentation, one with all of core and one with only the items available in a certified core.

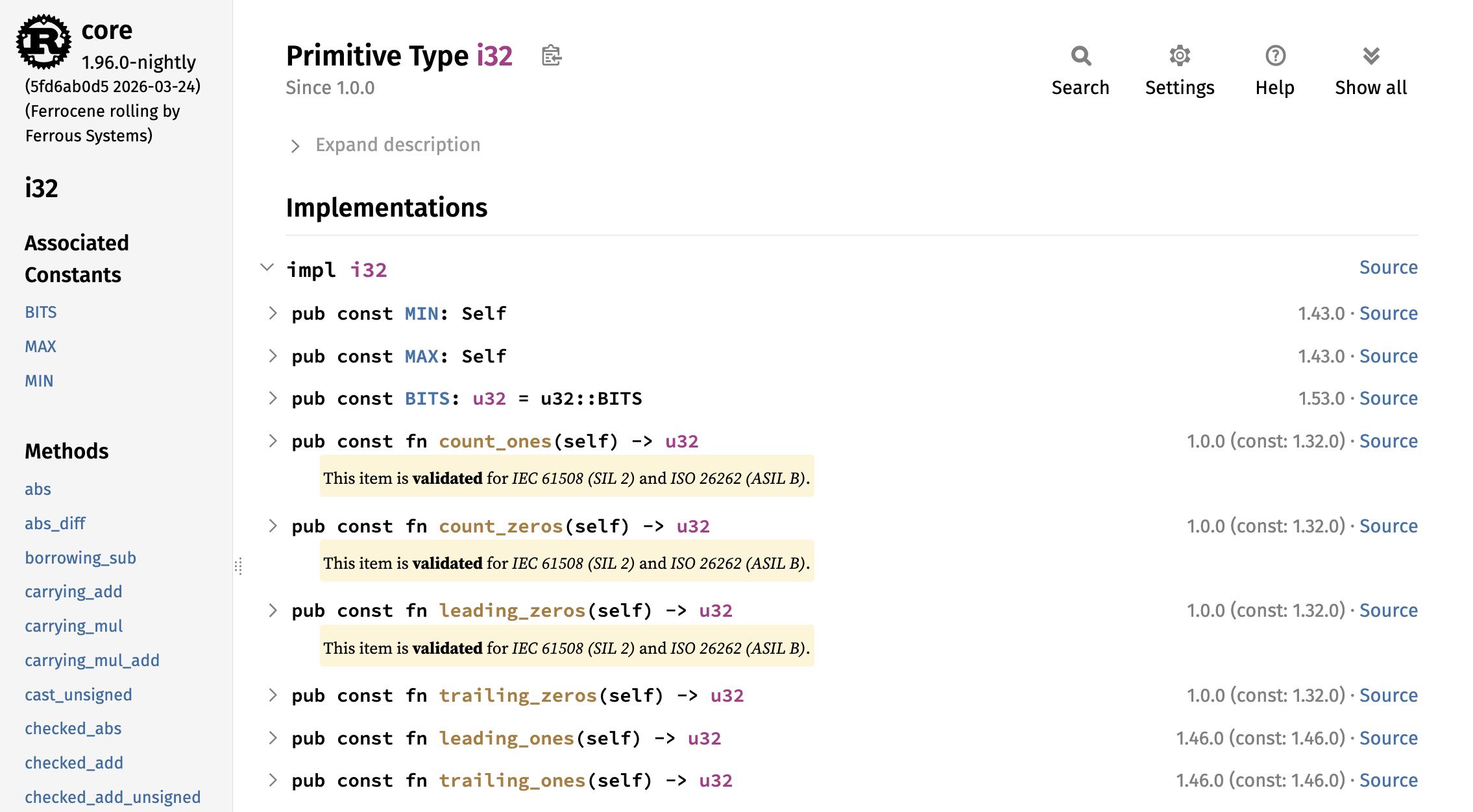

Our new approach is to reuse rustdoc's doc(cfg(…)) feature to note which items are validated and which aren't. This allows us to show both in the same document:

Future work

The same approach we use for detecting calls to unvalidated functions should also work for detecting calls which can panic. If requested by a customer ⁴, we could extend this lint to catch panics within safety-critical code, or within a customer-specified region of code.

Try it out yourself

Install Ferrocene

If you are a Ferrocene customer, installing Ferrocene is as simple as writing a criticalup.toml and running criticalup install:

manifest-version = 1

[products.ferrocene]
release = "nightly-2026-03-20"
packages = [
    "cargo-${rustc-host}",
    "rustc-${rustc-host}",
    "rust-std-${rustc-host}",
    "rust-src",
]

For more information, see the criticalup docs. To become a customer, see ferrocene.dev.

Ferrocene is open source, so even if you aren't a customer, you can consult our public docs for how to build Ferrocene from source.

Enable and run the lint

Consult our public safety-docs.

What have we learned?

• There are many existing approaches to callgraph analysis, but all of them are limited in one way or another.
• For Ferrocene, the most accurate approach was to write a custom rustc driver which uses a post-monomorphization pass to detect all resolved function calls.
• Callgraph analysis generalizes to things besides certification, such as detecting whether a given snippet of code panics.
